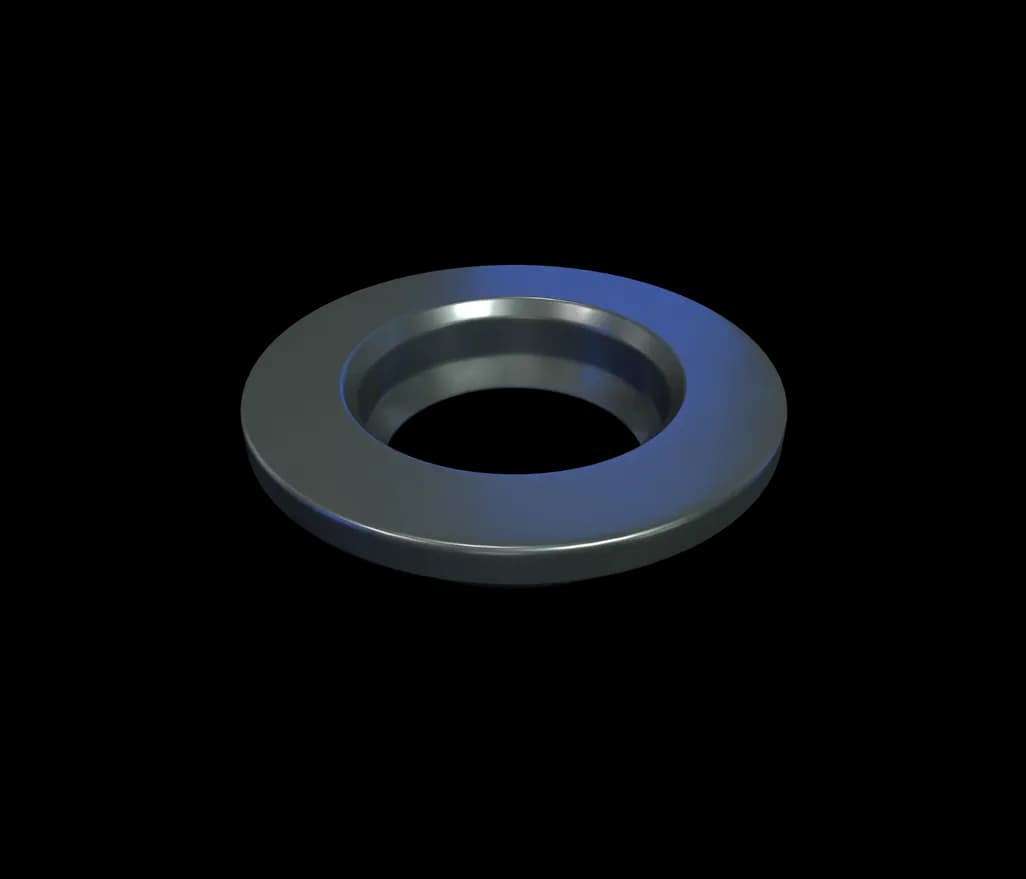

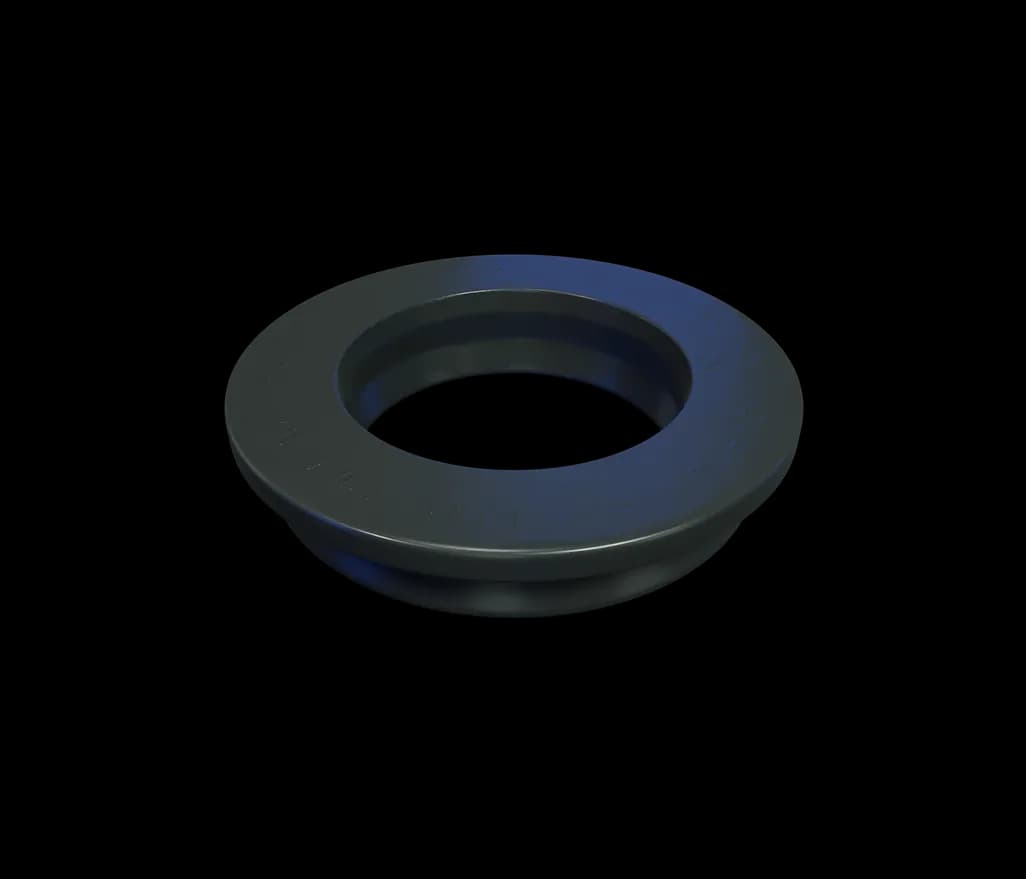

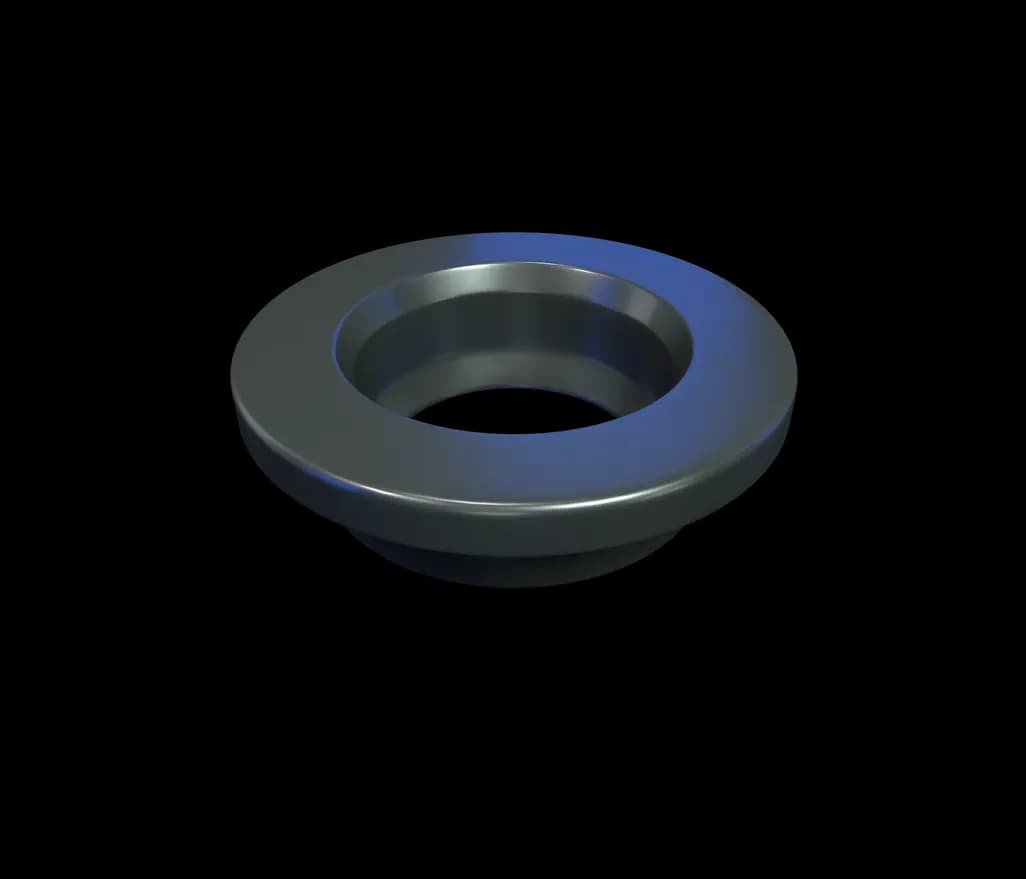

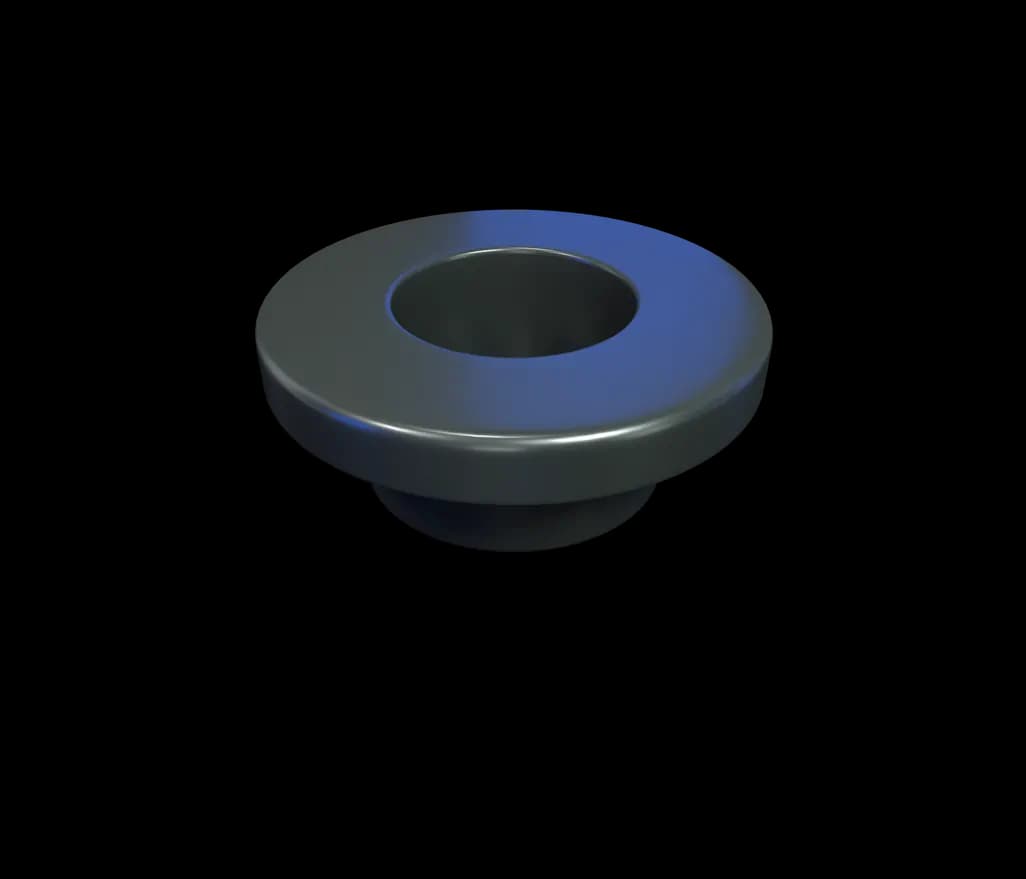

Poly Adapt-A-Flex Fittings
Instantly provides a water and vapor seal on either curved or flat surfaces!
- Ease of Installation —No Tools Required
- Weather and Corrosion Resistant
- No Bolts or Gaskets Required
- Requires No Sealants
- Durable PVC Composition
- Available in 3/8″ through 6″ sizes
- Works with Steel Pipe, Schedule 35 and 40 Plastic Pipe
INSTALLATION INSTRUCTIONS
- Chamfer ends of pipe for ease of installation
- Lubricate the pipe with soapy water
- Use a hole saw to cut an opening
Material
PVC 70 Durometer
Documents
Chart & Installation Instructions (PDF)
| Part Number | Hole Saw Size | AAF Size | Technical Drawings |
|---|---|---|---|
AAF-375 | 1" | 3/8" | |
AAF-050 | 1.25" | 0.5" | |
AAF-075 | 1.25" | .75" | |
AAF-100 | 1" | 1.75" | |
AAF-125-H250 | 2.5" | 1.25" | |
AAF-125-H300 | 3" | 1.25" | |
AAF-150-H250 | 2.5" | 1.5" | |
AAF-150-H300 | 3" | 1.5" | |
AAF-200 | 3" | 2" | |
AAF-300 | 3.875" | 3" | |
AAF-400-S35 | 4.875" | 4" SCH 35 | |
AAF-400-S40 | 4.875 | 4" SCH 40 | |
AAF-600-S35 | 7" | 6" SCH 35 | |
AAF-600-S40 | 7" | 6" SCH 40 | |
AKR30560 | 4 7/8" | 4" | |
AAF-RP5 | 3" | 2" |
