Ribbed Basins

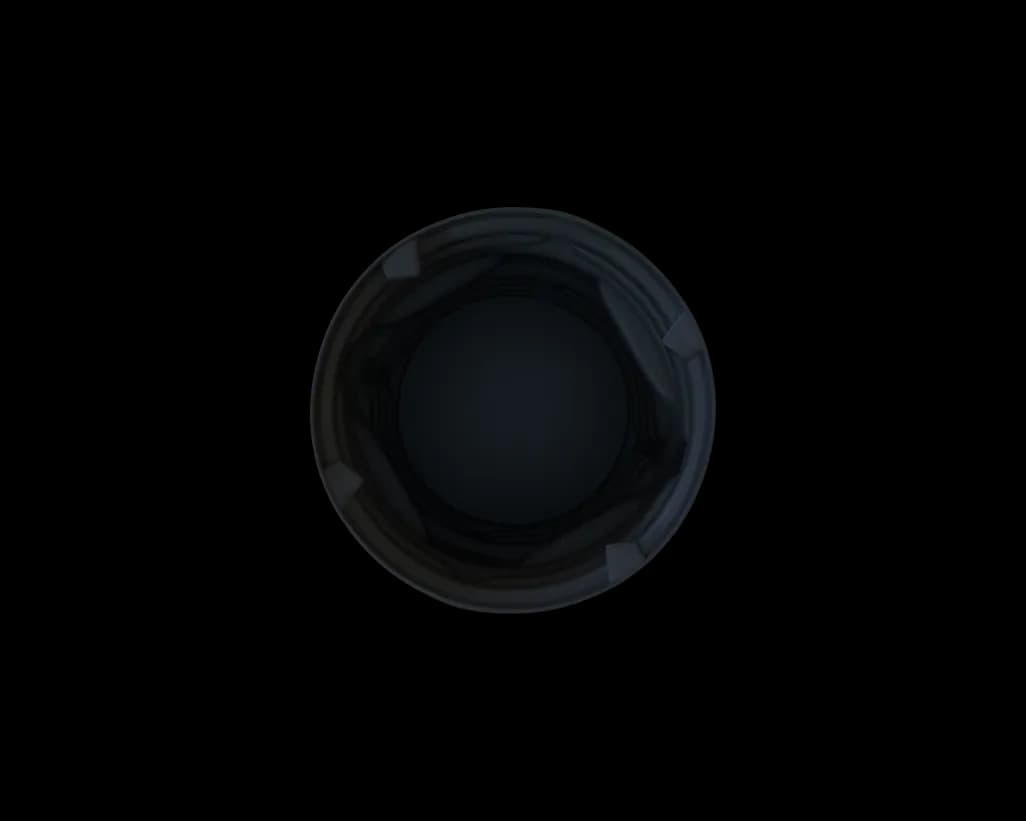

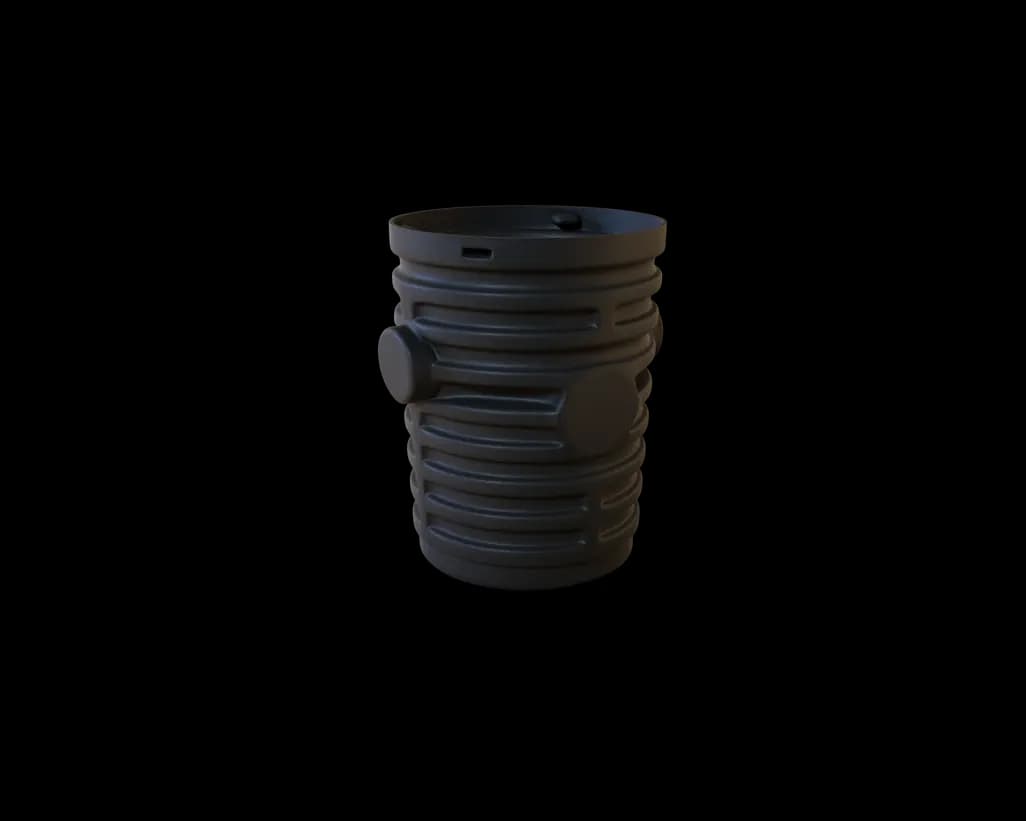

The Ribbed Basin is a rotationally molded, polyethylene sump basin that comes in a variety of sizes: 24 x 48 (108 Gal.), 24 x 60 (134 Gal.), 24 x 84 (175 Gal.), 24 x 96 ( gallons). and 36 x 48 (200 Gal.). This basin can function as an external sump basin or lift-out station
Material
Non-Corrosive, No Break High Density Polyethylene
Note
- Warranty: One Year
- Strong Seamless Construction
- Depths available from 48″ to 96″
- Accepts 4″ Adaptaflex, PVC hubs, and Cast-Iron Hubs
- 8 molded inserts to protect self-tapping screws from concrete
- Available alone or with a complete rail system
Packaged pump station options include:
- Stainless Steel Guide Rails
- Stainless Steel Discharge Piping
- Polyethylene Cover Options
- Pump Lifting Chains
- Engineered Ribbed Design
Documents
Installation Instructions (PDF)
| Part Number | Description | Capacity | Weight | Technical Drawings |
|---|---|---|---|---|
AKP20010 | 24×48 Poly Ribbed Basin | 108 gal | 67 lbs | |
AKP20020 | 24×60 Poly Ribbed Basin | 134 gal | 80 lbs | |
AKP20020-H | 24x60 HD Poly Ribbed Basin | 134 gal | 90 lbs | |
AKP20030 | 24×72 Poly Ribbed Basin | 162 gal | 94 lbs | |
AKP20040 | 24×84 Poly Ribbed Basin | 175 gal | 105 lbs | |
AKP20260 | 36x48 Poly Ribbed Basin W/O InsertS | 222 Gal | 120 lbs | |
AKP20270 | 36x48 Poly Ribbed Basin W/Inserts | 222 Gal | 120 lbs |
