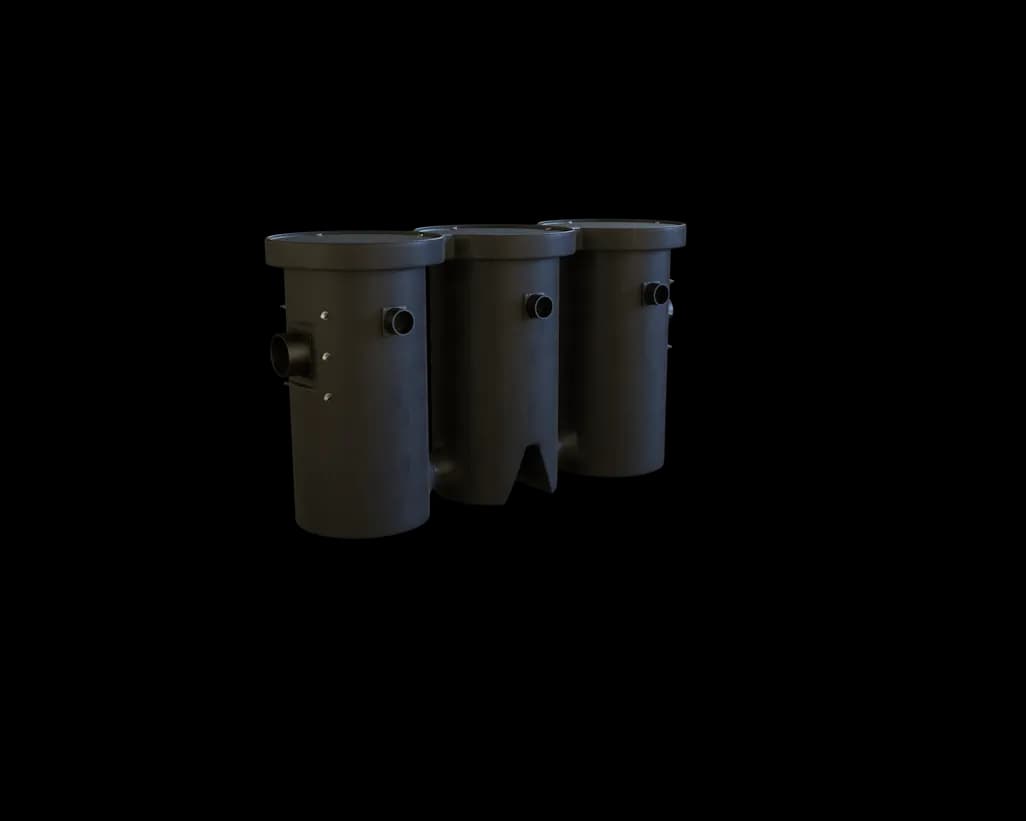

Poly Triple Garage Basins
The AK Industries Polyethylene Triple Garage Basin Systems provide superior separation of oil, gas and other volatile liquids. Typically used in garages, kitchens, cleaning plants, and other facilities where volatile gases can develop causing potentially explosive situations. Fumes are passed into the air via a venting system, while allowing fluids to pass through the system safely.
The Polyethylene Triple Garage Basin Systems are manufactured using a rotational molding process with a high-grade plastic. This process ensures superior strength and durability with its non-corrosive polyethylene construction over other like units on the market.
The Poly Triple Garage Basin has a 100 Gallon capacity, comes standard with 4″ inlet and outlets, 2″ vent fittings on each tank and is omnidirectional. It also is available with east to west or west to east flows. The unit comes completely assembled with three powder coated steel lids, for easy stress free installation.
Material
Hexene Copolymer of Linear Low-Density Polyethylene
Note
- Designed for garages, kitchen, cleaning plants, and similar facilities where dangerous gases can accumulate
- Pre-plumbed at the factory for easy installation
- Cast Iron Inlet/Outlet Fittings 2″ Vent Fittings on each basin
- Molded Inserts to protect self-tapping screws from corrosion
- Steel Powder Coated Covers
- Accepts extensions AKP10270 (6″) & AKP10260 (12″)
- Accepts any 18″ cover
- One Year Warranty
Documents
| Part Number | Description | Capacity | Weight | Technical Drawings |
|---|---|---|---|---|
AKP50650 | Triple Garage Basin w/ North Vent | 100 gal | 110 lbs |
