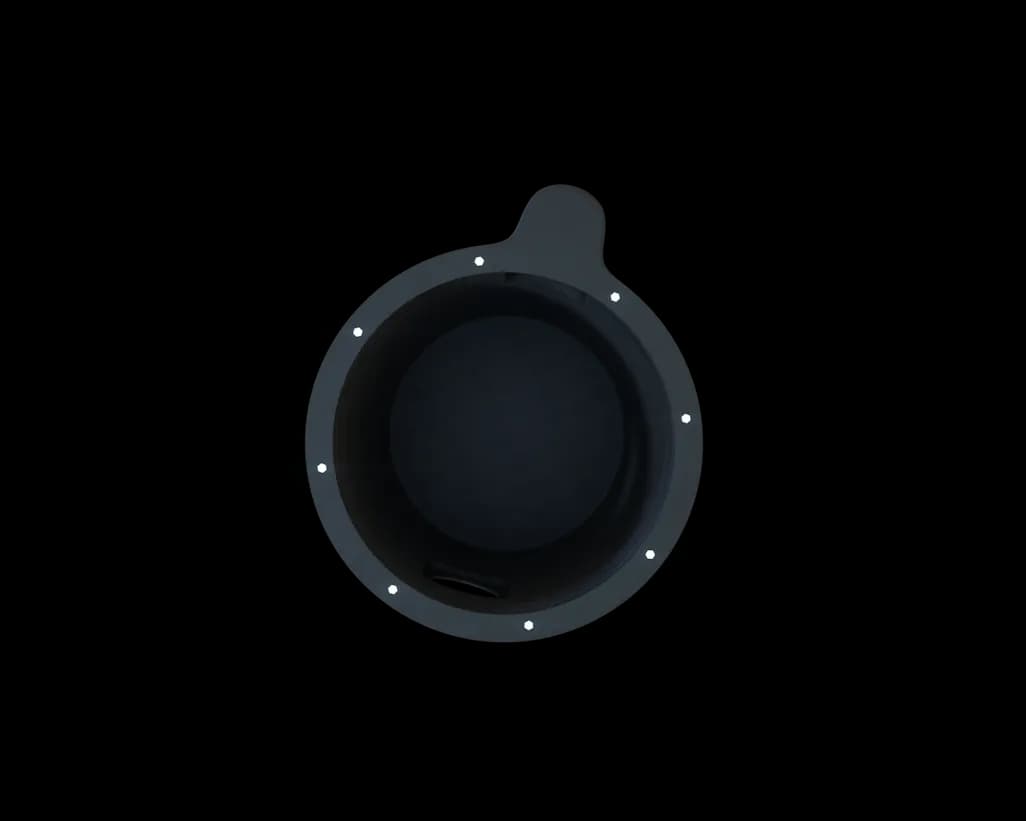

Side Vent Basins

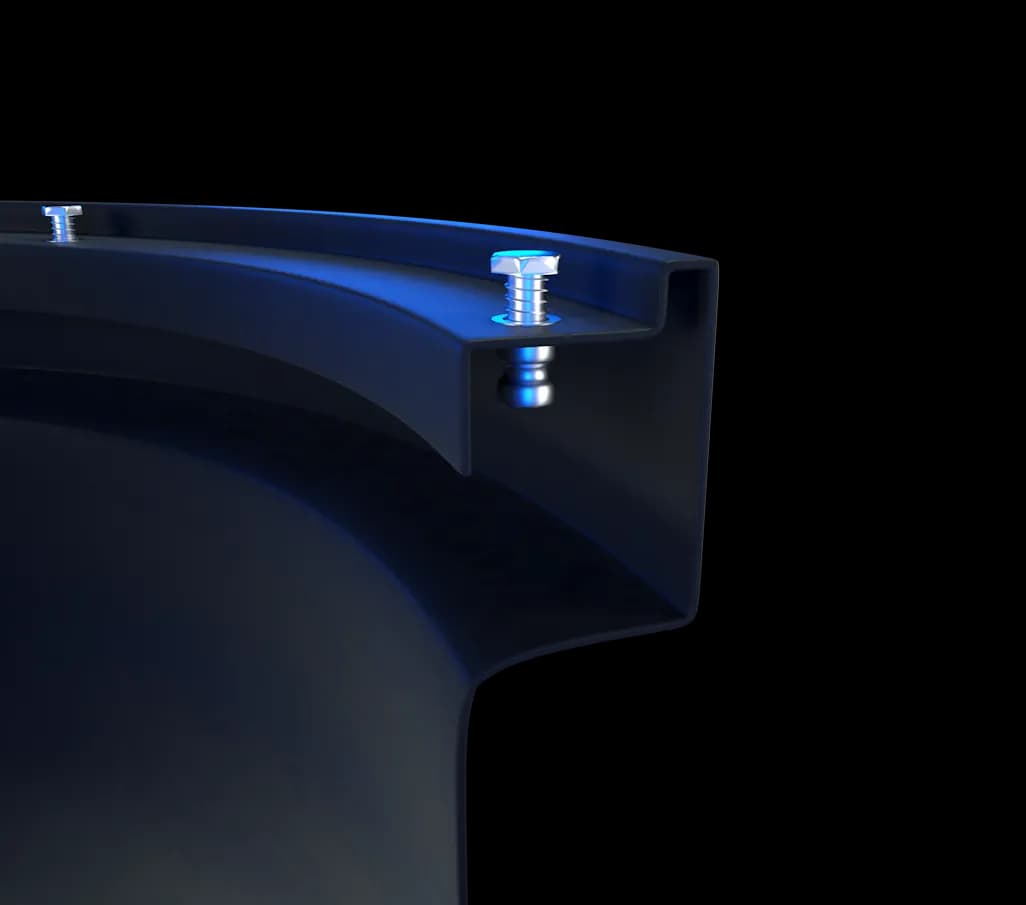

4-1/4″-20 Encapsulated Molded Inserts (18×30″)

10 – 1/4″-20 Encapsulated Molded Inserts (22×32″)

Accepts Several Cover Configurations

Accepts 4″ Adaptaflex, Cast Irons, and PVC Hubs

Designed Especially for Sewage Applications

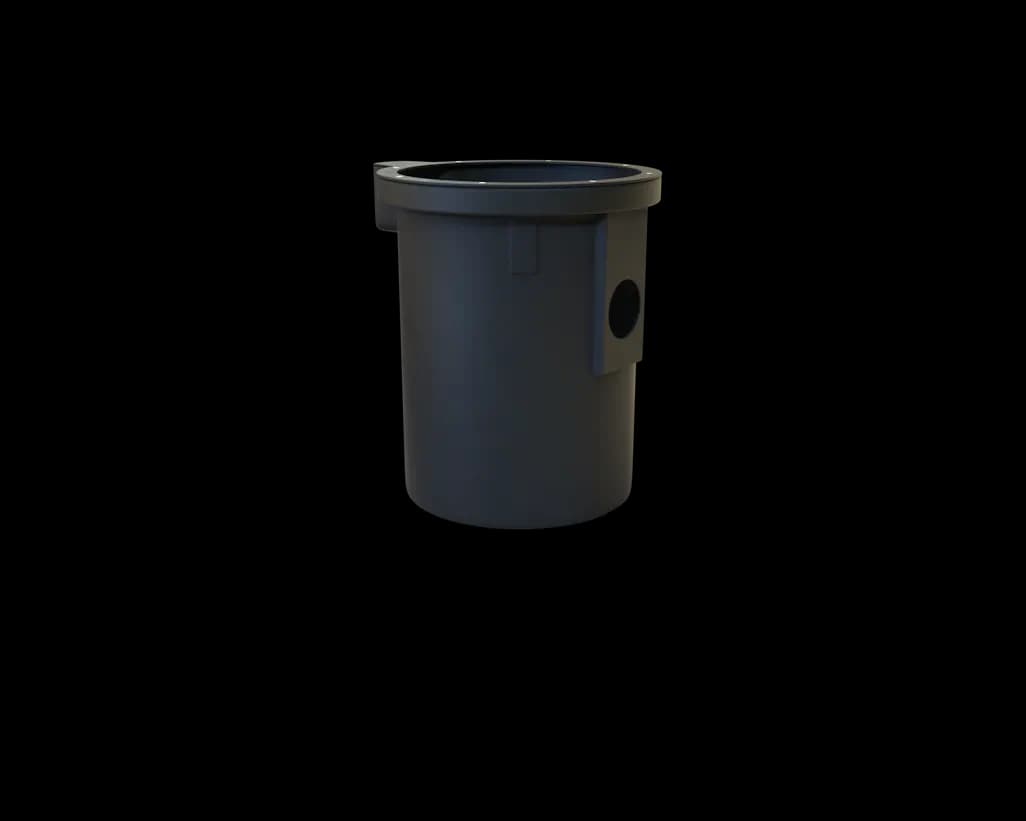

2″ or 3″ Side Vent Fitting Allows Vent to Remain Connected When Basin is Serviced

Material

Hexene Copolymer of Low-Density Polyethylene

Select a Variant

Part Number	Description	Capacity	Weight	Wall Thickness	Technical Drawings
AKP40010	18×30″ Side Vent Basin W/ 2″ Vent	30 gal	16 lbs	0.188”	AKP40010
AKP40040	18×30″ Side Vent Basin W/ 2″ Vent, (1) 4″ AFF Installed 10.5″ Down	30gal	16lbs	0.188”	AKP40040
AKP40050	18×30″ Side Vent Basin W/ 2″ Vent, (1) 4″ Cast Iron Hub Installed 10.5″ Down	30 gal	16 lbs	0.188”	AKP40050
AKP40060	18×30″ Side Vent Basin W/ 2″ Vent, (1) 4″ Internal Hub Installed 10.5″ Down	30 gal	16 lbs	0.188”	AKP40060
AKP40070	18×30″ Side Vent Basin W/ 3″ Vent	30 gal	16 lbs	0.188”	AKP40070
AKP40100	18×30″ Side Vent Basin W/ 3″ Vent, (1) 4″ AFF Installed 10.5″ Down	30 gal	16 lbs	0.188”	AKP40100
AKP40110	18×30″ Side Vent Basin W/ 3″ Vent, (1) 4″ Cast Iron Hub Installed 10.5″ Down	30 gal	16 lbs	0.188”	AKP40110
AKP40120	18×30″ Side Vent Basin W/ 3″ Vent, (1) 4″ Internal Hub Installed 10.5″ Down	30 gal	16 lbs	0.188”	AKP40120
