Poly Pro 18×30 Sump & Sewage Basins
The Poly Pro Series 18×30″ injection molded, high density polyethylene sump basin offers a true 30 gallon capacity coupled with the ability to accept a wide variety of fittings and steel or structural foam covers, makes this the perfect basin for your installation.
Material
Non-Corrosive, No Break High Density Polyethylene
Note
- Warranty: One Year

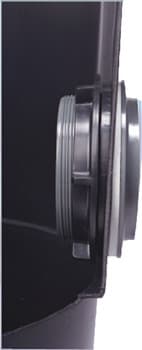

- Accepts 3″ & 4″ Adaptaflex, PVC Hubs and Cast Iron Hubs
- Reinforced Recessed Flange

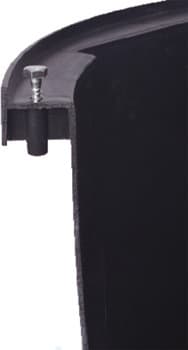

- 8 Molded Inserts to protect self-tapping screws from concrete
Documents
Installation Instructions (PDF)
| Part Number | Description | Capacity | Weight | Wall Thickness | Technical Drawings |
|---|---|---|---|---|---|
AKP38000 | 18×30 Sump & Sewage Basin Plain | 30gal | 10lbs | 0.188” | |
AKP38005 | 18×30 Sump & Sewage Basin W/ Feet | 30gal | 10lbs | 0.188” | |
AKP38010 | 18×30 Sump & Sewage Basin W/ Feet, (1) 3″ AAF (Loose) | 30gal | 10lbs | 0.188” | |
AKP38015 | 18×30 Sump & Sewage Basin, W/ Feet, (1) 4″ AAF (Loose) | 30gal | 10lbs | 0.188” | |
AKP38020 | 18×30 Sump & Sewage Basin W/ Feet, (1) 4″ Cast Iron Hub, (Installed) | 30gal | 10lbs | 0.188” | |
AKP38025 | 18×30 Sump & Sewage Basin W/ Feet, (1) 4″ PVC Inlet Hub (Loose) | 30gal | 10lbs | 0.188” | |
AKP38030 | 18×30 Sump & Sewage Basin W/ (2) 4″ Cast Iron Hubs (Installed) | 30gal | 10lbs | 0.188” | |
AKP38035 | 18×30 Sump & Sewage Basin W/ (2) 4″ PVC Inlet Hubs (Loose) | 30gal | 10lbs | 0.188” | |
AKP38040 | 18×30 Sump & Sewage Basin W/ (1) 4″ AAF (Loose) | 30gal | 10lbs | 0.188” | |
AKP38045 | 18×30 Sump & Sewage Basin W/ (1) 4″ Cast Iron Hub (Installed) | 30gal | 10lbs | 0.188” | |
AKP38050 | 18×30 Sump & Sewage Basin W/ (1) 4″ PVC Inlet Hub (Loose) | 30gal | 10lbs | 0.188” | |
AKP38055 | 18×30 Sump & Sewage Basin W/ (1) 3″ AAF (Loose) | 30gal | 10lbs | 0.188” | |
AKP38060 | 18×30 Sump & Sewage Basin W/ (1) 3″ PVC Inlet (Loose) | 30gal | 10lbs | 0.188” | |
AKP38065 | 18×30 Sump & Sewage Basin W/ (1) 4″ AAF, No Hole (Loose) | 30gal | 10lbs | 0.188” | |
AKP38070 | 18×30 Sump & Sewage Basin W/ (1) 4″ PVC Combo Hub (Loose) | 30gal | 10lbs | 0.188” |
