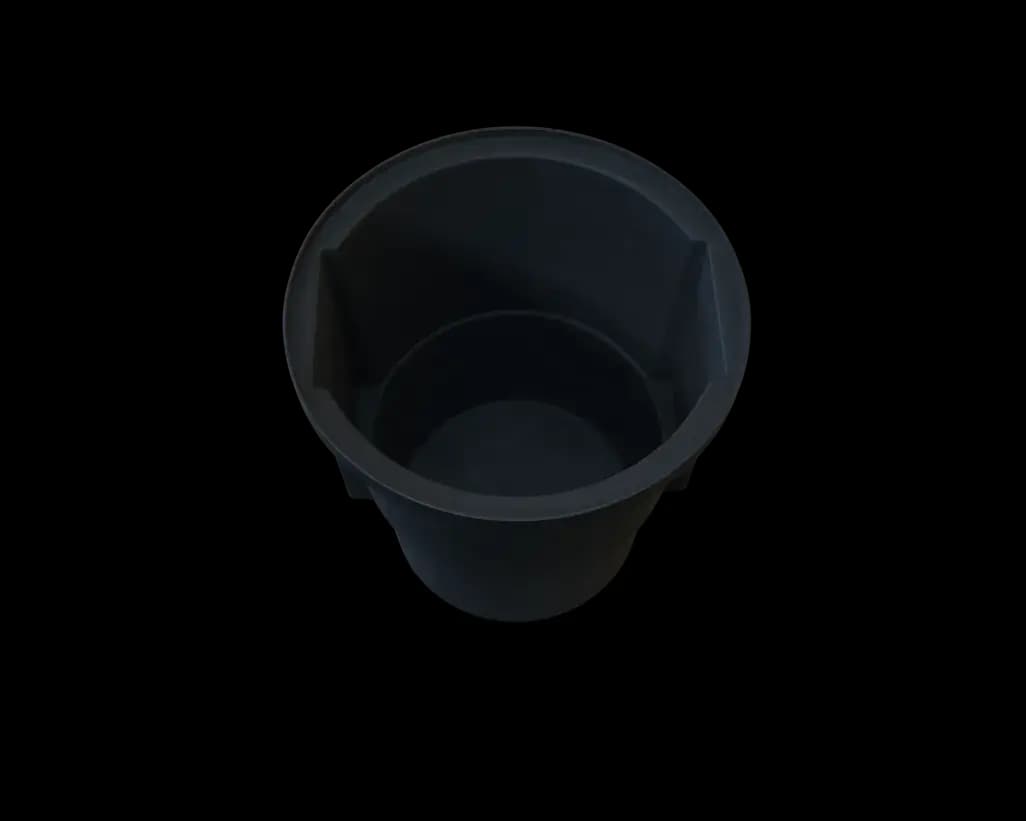

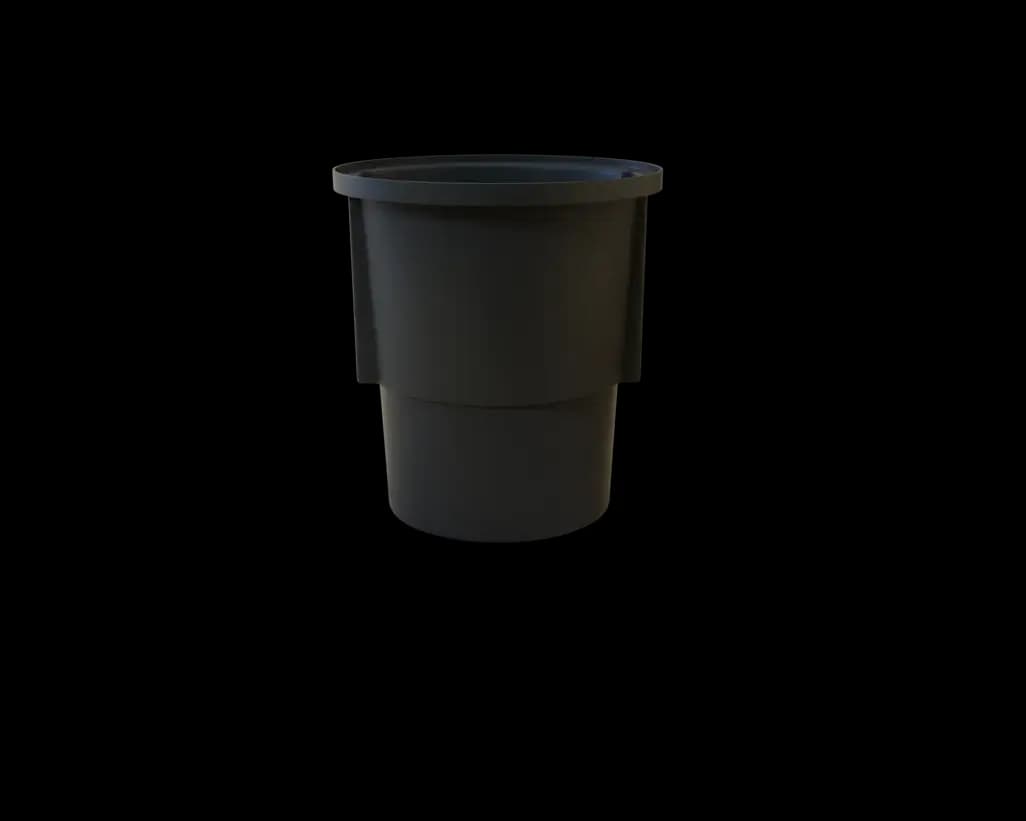

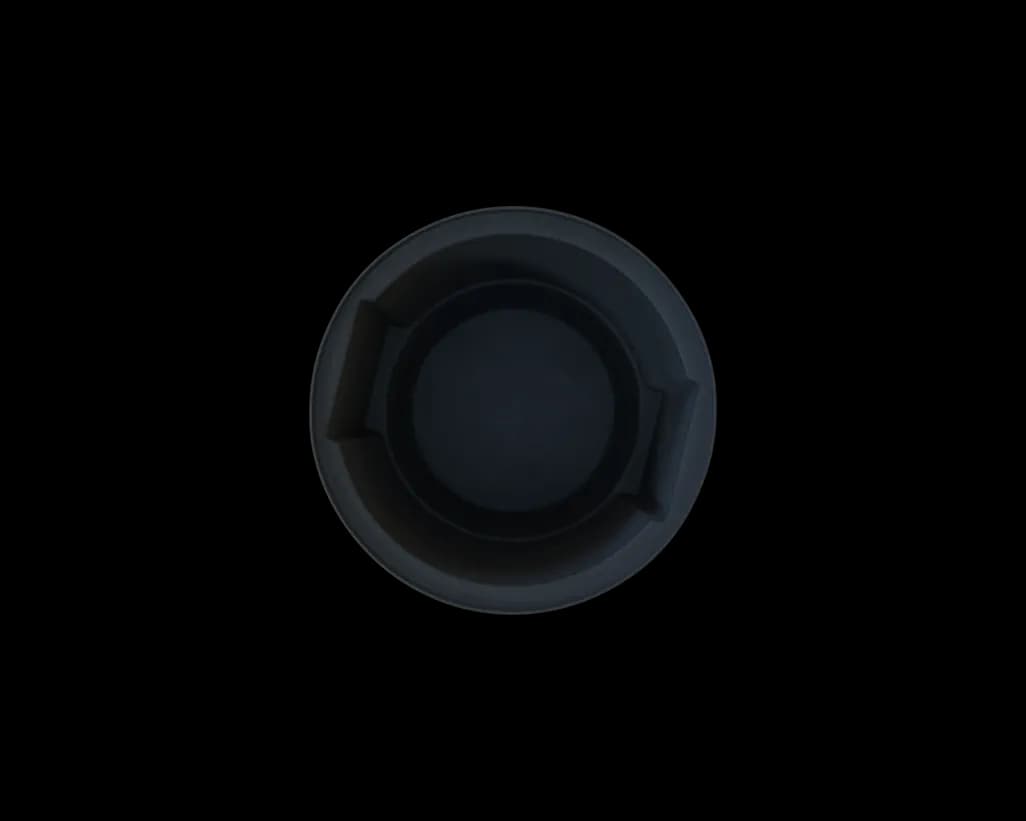

Poly Pro 18×22 Sump & Sewage Basins
The Poly Pro Series 18×22″ injection molded, high density polyethylene sump basin offers a true 22 gallon capacity coupled with the ability to accept a wide variety of fittings and steel or structural foam covers, makes this the perfect basin for your installation.
Material
Non-Corrosive, No Break High Density Polyethylene
Note
- Warranty: One Year
- Accepts 3″ & 4″ Adaptaflex, PVC Hubs and Cast Iron Hubs
- Reinforced Recessed Flange
- 8 Molded Inserts to protect self-tapping screws from concrete
Documents
Installation Instructions (PDF)
| Part Number | Description | Capacity | Weight | Wall Thickness | Technical Drawings |
|---|---|---|---|---|---|
AKP35000 | 18×22 Sump & Sewage Basin Plain | 22gal | 8lbs | 0.188” | |
AKP35005 | 18×22 Sump & Sewage Basin W/ (2) 4″ AAF’s, 9″ Down, 180° Apart (Loose) | 22gal | 8lbs | 0.188” | |
AKP35010 | 18×22 Sump & Sewage Basin W/ (2) 4″ Cast Iron Hubs, 9″ Down, (Installed) | 22gal | 8lbs | 0.188” | |
AKP35015 | 18×22 Sump & Sewage Basin, (1) 4″ AAF, 9″ Down, (Loose) | 22gal | 8lbs | 0.188” | |
AKP35020 | 18×22 Sump & Sewage Basin W/ (1) 4″ Cast Iron Hub, (Installed) | 22gal | 8lbs | 0.188” | |
AKP35025 | 18×22 Sump & Sewage Basin W/ Multi Drain Holes | 22gal | 8lbs | 0.188” | |
AKP35030 | 18×22 Sump & Sewage Basin W/ (1) 4″ Hole, 10″ Down | 22gal | 8lbs | 0.188” | |
AKP35035 | 18×22 Sump & Sewage Basin W/ (2) 4.5″ Holes, 180° Apart, 10″ Down | 22gal | 8lbs | 0.188” | |
AKP35040 | 18×22 Sump & Sewage Basin W/ (1) 5″ Hole, 10″ Down | 22gal | 8lbs | 0.188” | |
AKP35045 | 18×22 Sump & Sewage Basin W/ (1) 5″ Hole, 7″ Down | 22gal | 8lbs | 0.188” | |
AKP35050 | 18×22 Sump & Sewage Basin W/ (2) 5″ Holes, 7″ Down | 22gal | 8lbs | 0.188” | |
AKP35055 | 18×22 Sump & Sewage Basin W/ (2) 5″ Holes, 90° Apart, 10″ Down | 22gal | 8lbs | 0.188” | |
AKP35060 | 18×22 Sump & Sewage Basin W/ (2) 2″ AAF’s, 9″ Down, (Loose) | 22gal | 8lbs | 0.188” | |
AKP35065 | 18×22 Sump & Sewage Basin W/ (1) 2″ AAF’s, (Loose) | 22gal | 8lbs | 0.188” | |
AKP35070 | 18×22 Sump & Sewage Basin W/ (1) 3″ AAF, 9″ Down, (Loose) | 22gal | 8lbs | 0.188” | |
AKP35075 | 18×22 Sump & Sewage Basin W/ (1) 3″ AAF, No Hole | 22gal | 8lbs | 0.188” | |
AKP35080 | 18×22 Sump & Sewage Basin W/ (1) 4″ PVC Inlet, (Loose) | 22gal | 8lbs | 0.188” | |
AKP35085 | 18×22 Sump & Sewage Basin W/ (2) 4″ PVC Inlets, (Loose) | 22gal | 8lbs | 0.188” | |
AKP35090 | 18×22 Sump & Sewage Basin W/ (1) 4″ PVC Combo Hub, (Loose) | 22gal | 8lbs | 0.188” | |
AKP35095 | 18×22 Sump & Sewage Basin W/ (1) 3″ PVC Inlet, (Loose) | 22gal | 8lbs | 0.188” |
