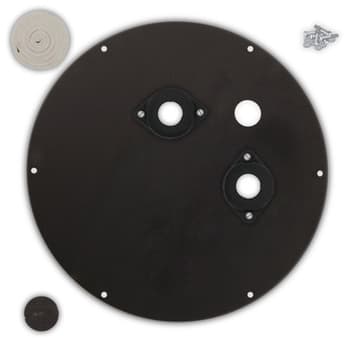

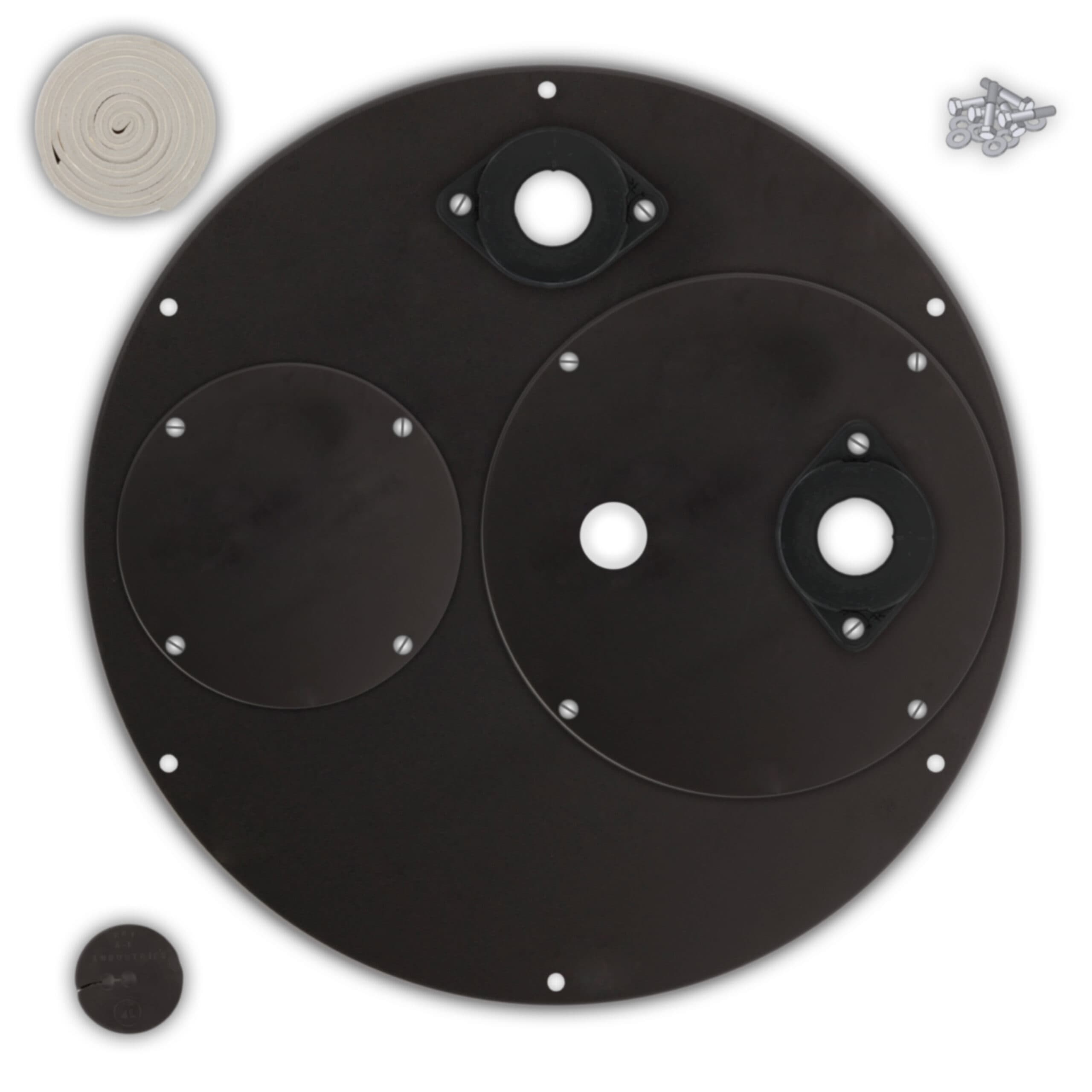

24” Diameter Simplex Covers
Standard covers are available in 1/4″ thickness and above rated at 300 Lbs pedestrian load rated. The steel covers in a 10GA material will not be rated. Steel covers are of a smooth surface available in a non-corrosive enamel finish, powder coating, epoxy coating, or galvanized finish. The fiberglass covers and the aluminum covers are complete with a diamond plate finish. The fiberglass covers have a UV inhibitor to protect against fading or chaulking. All covers provided by AK Industries carry a one-year warranty against defects in material and/or workmanship.
Note
- Round Covers: (6) 9/16″ holes on a 26 1/2″ Bolt Circle
- Square Covers: (8) 9/16″ holes on a 26 1/2″ Bolt Pattern
Documents
One Year Warranty (PDF)
Select a Variant
| Part Number | Description | Weight | Thickness | Technical Drawings |
|---|---|---|---|---|
LB-10-S2401 | Simplex Steel | 29lbs | 10GA | |
LB-10-S2401-I | Simplex Steel w/ Inspection Plate | 29lbs | 10GA | |
LB-S2401 | Simplex Steel | 49lbs | 1/4" | |
LB-S2401-I | Simplex Steel w/ Inspection Plate | 52lbs | 1/4" | |
LB-A2401 | Simplex Aluminum | 26lbs | 1/4" | |
LB-A2401-I | Simplex Aluminum w/ Inspection Plate | 26lbs | 1/4" | |
LB-S2401 PERF | Simplex Perforated Steel | 47lbs | 1/4" | |
LB-A2401 PERF | Simplex Aluminum Perforated | 24lbs | 1/4" | |
LB-S2401-I PERF | Simplex Perforated Steel W/ Inspection Plate | 50lbs | 1/4" | |
LB-A2401-I PERF | Simplex Perforated Aluminum W/ Inspection Plate | 24lbs | 1/4" |
