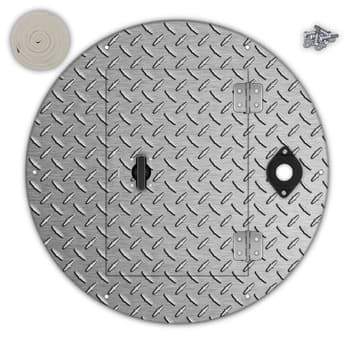

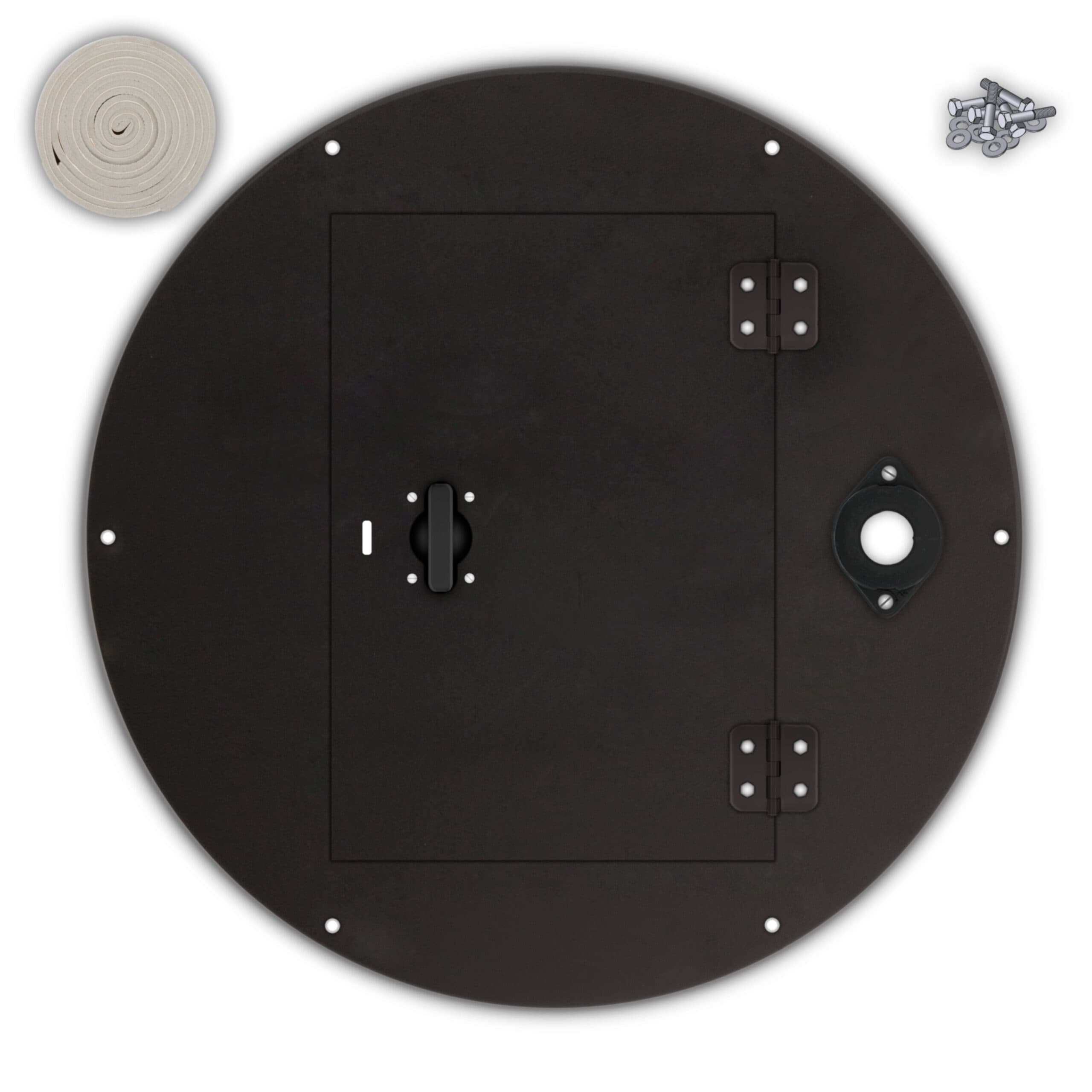

30” Diameter Hinged Door Covers
Thumbnail 1
Thumbnail 2

30” Diameter Hinged Door Covers

Standard covers are available in 1/4″ thickness and above rated at 300 Lbs pedestrian load rated. The steel covers in a 10GA material will not be rated. Steel covers are of a smooth surface available in a non-corrosive enamel finish, powder coating, epoxy coating, or galvanized finish. The fiberglass covers and the aluminum covers are complete with a diamond plate finish. The fiberglass covers have a UV inhibitor to protect against fading or chaulking. All covers provided by AK Industries carry a one-year warranty against defects in material and/or workmanship.

Note

  • Round Covers: (6) 9/16″ holes on a 32 1/2″ Bolt Circle
  • Square Covers:(6) 9/16″ holes on a 32 1/2″ Bolt Pattern

Documents

One Year Warranty (PDF)
Download

Select a Variant

Part NumberDescriptionWeightThicknessTechnical Drawings
LB-S30HDC
Steel Hinged Door
91lbs
1/4"
LB-A30HDC
Aluminum Hinged Door
54lbs
1/4"
